Foshan, Guangdong, China · Established 2019
All-aluminium, steel-core aluminium-clad and all-steel fire-rated partition systems — nine profile series and five glass configurations, supplied to fit-out contractors, system integrators, distributors and overseas projects. Send us your drawings or a schedule of areas and we will quote against them.
Three partition systems cover most office requirements. Within each system, the profile series fixes the frame width, glass build-up and the performance you can specify.

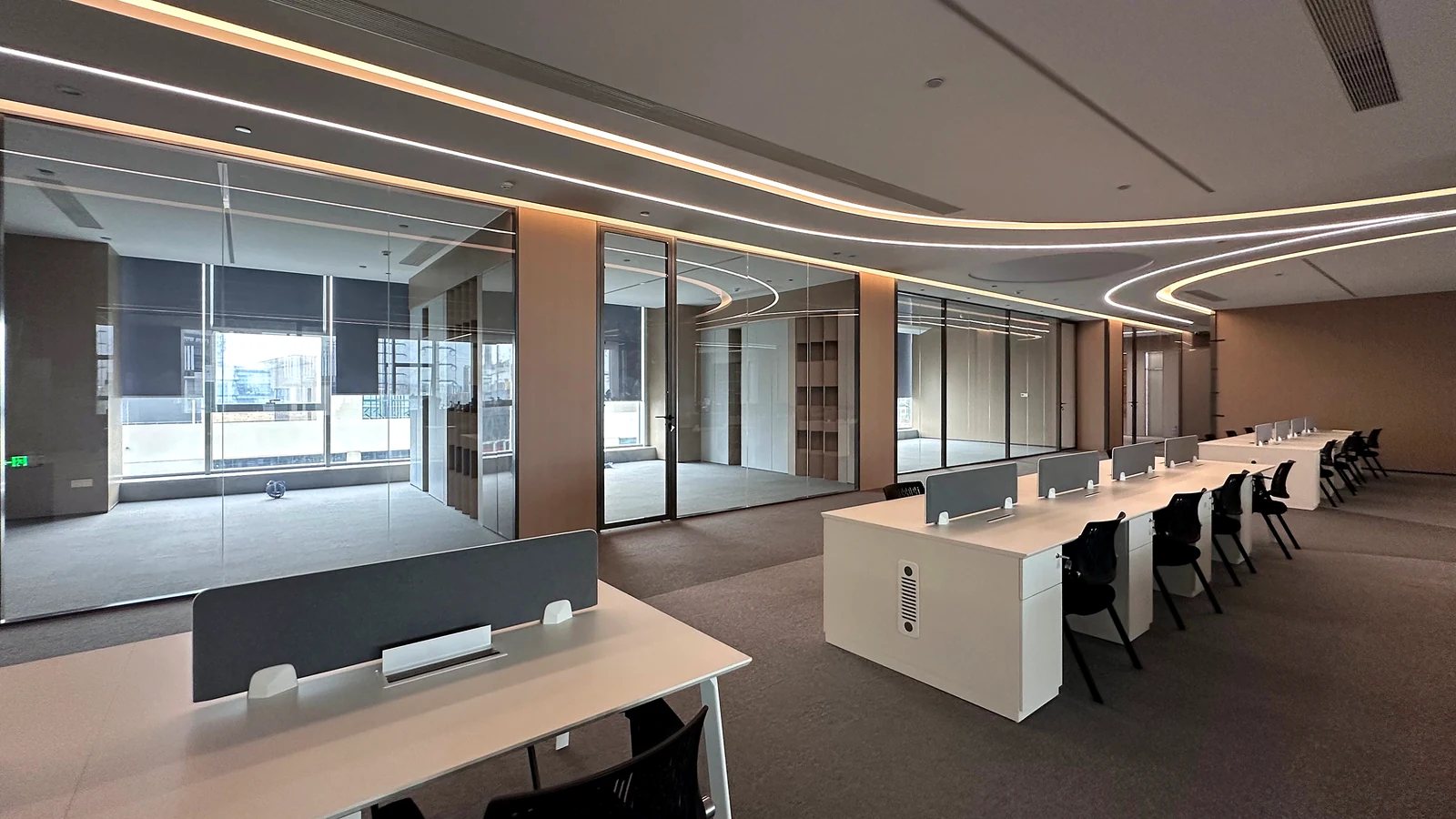

Extruded aluminium frames for open offices, meeting rooms and reception areas, where sightlines and cost matter more than structural reinforcement.
Aluminium-finished profiles with a galvanised steel core for spans and partitions where rigidity and resistance to deformation are specified.
Roll-formed steel profiles with fire-rated glass and graphite intumescent strips, for fire compartments and escape routes.
The same profile series can be built with different glass build-ups and hardware, so one system can serve several areas of a project.
One layer of toughened glass in a minimal frame — the most transparent and most economical option for open offices, reception and showrooms.
Available on M-25, M-40, M-60, M-V84, M-100
Blinds sealed between two glass panes, adjustable by magnet or cord. Daylight, privacy and acoustic separation in one assembly — for meeting rooms, finance offices and management offices.
Available on M-60, M-V84, M-100 · Details →
Clear to frosted at the flick of a switch, for boardrooms and consultation rooms where privacy changes during the day. Requires a power supply at the frame.
Available on M-V84 and M-100
Monolithic, laminated or composite fire-rated glass from 6 mm to 38 mm, used with the all-steel fire-rated systems.
Available on M-116 and MJ-95 · Details →
Surface treatments for semi-private or decorative partitions. Samples can be selected against your drawings.
Available across series
Our profile and partition systems have been tested by an independent Chinese testing body. Report numbers are published so that consultants, main contractors and overseas buyers can verify them.
| Property | Standard | Result |
|---|---|---|
| Sound reduction (M-V83 steel-core partition, 83 mm) | GB/T 50121-2005 | Rw 46 dB measured (requirement Rw ≥ 42 dB) |
| Impact resistance | GB/T 23451-2009 | 330 Nm dynamic / 2.7 kN/m static |
| Wind load resistance | GB/T 7106-2019 | Class 5 |
| Water tightness | GB/T 7106-2019 | Class 4 |
| Reaction to fire | GB 8624-2012 | Class B1 |
| Aluminium profile, 19 tests | GB/T 5237 series | All items conforming (tensile strength 230 N/mm², Webster hardness 13.0 HW) |
Send elevations, a schedule of areas or a take-off list. We return a quotation line by line, with the profile series, glass build-up and hardware itemised.
Profiles, glass, integrated blinds and hardware supplied as a package to fit-out contractors and system integrators, or as profiles only.
Drawing-based production under your own brand. Tooling and profile development discussed against your section drawings.
Our business licence includes the import and export of goods and technology, together with customs declaration agency services. FOB and CIF terms can be quoted.
Tell us the floor height, the use of each area, and any acoustic or fire requirement. If you have drawings, send them — that is the fastest route to an accurate quotation.
